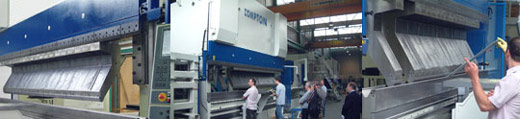

T-Bend Series
Every single machine is custom built and yet still extremely adaptable. For these machines offer you, from the very outset, every option and can be assembled step-by-step in accordance with your special contract specifications – machining design that leaves you wishing for nothing more.
The entire machine geometry can be built up individually, press tonnage and working length are variable, just as are the table, ram and frame.
- Capable of handling over-sized part geometries
- Built to user specifications
- LCB angle sensors for perfect bending results
- Multi-V tool technology for the ultimate in efficiency
T-bend Series 7100
The throat depth and stroke are also adjusted to your wishes and a multitude of well thought-out accessories makes bottom bending completely productive with machines in the T-bend 7100.
Flexibility
With the T-Bend Series 7100, you choose press force and bending length to meet your needs.Wide selection of accessories and add-on modules.
Quality
You benefit from years of experience in the construction of tailor-made machines for customers all around the world. Series-fabricated assemblies guarantee high quality at a reasonable price/performance ratio.
Specification |
T-Bend 7100 |
T-Bend 7100 |
Press force |
7500 kN |
7000 kN |
Bending length |
1550 mm - 1550 mm |
1550 mm - 4050mm |
Table/beam istance |
620 mm - 620 mm |
720 mm - 1020 mm |
Rapid speed |
160 mm/s |
220 mm/s |
Max. working speed |
10 mm/s |
10 mm/s |
