Plasma Cutting

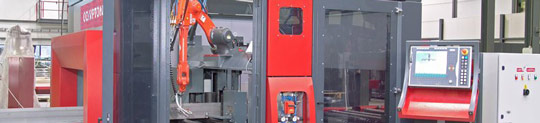

The Compton L-Plasma series is the market leading plasma cutting system with 8 axis. The extreme flexibility of the robot in combination with machine structure enables the machine to cut every 3D shape possible.
This system allows for enormous freedom to design and produce structures with the most complex connections and copes, but also a significant increase in production speed.
By launching the L-Plasma it is now, possible to mark all four sides of metal.
2nd additional axis
Compared to the L-Plasma series machine has two additional axis. The main advantage is that with these additional axis the machine is able to cut/mark on the bottom side.
Flexible cutting due to 2 cutting area’s
By using a measuring system (measuring rolls) mounted in the middle of the machine and a fixed position of the robot in the centre of the system, it is possible to cut on both front and end of the material in one process.
No restriction in only using standard macro's
From now on you can import any shape you want. And even better, without almost any adjustment you can start producing your products. The CAD module will also show you the actual dimensions in a clear graphical image.
Interconnection with software systems
The combination of several machines in one automated line results in a minimum of handling and a complete process that can be controlled by one person. The control system can be integrated in the company’s network.
L-Plasma 907 |
L-Plasma 907M |
|
Capacity (kg/m) |
1.100 |
1.100 |
Max. pos. weight |
13.200 |
13.200 |
Cutting |
plasma |
plasma (optional oxygen) |
Layout marking |
3 sides |
4 sides |
Shapes |
all (holes, cuts and beveling) |
all (holes, cuts and beveling) |
