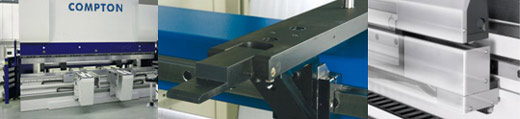

F-Press Series

Are you looking for a very special solution? If yes, we can offer you a bottom bending press that will construct and equip in accordance with your requirements.

Many years experience in bottom bending press construction and several thousand machines installed worldwide is the basis of our expertise and quality. Large presses, tandem machines, special machines, special tools, special extensions, special backstops, and much more are put into practice by our engineers every day.

Laser Control Bending (LCB)

The angle measuring system avoids extensive positioning processes, optimises your bending results effectively and helps reduce scrap parts.
Along with the LCB, we offer a measuring device which meets the increasing cost pressure and quality requirements.

Flexibility

Technology from Compton. All backstop systems have a dynamic axle drive with AC servo motors and thus provide for the best positioning speeds.

Quality

Other characteristics of quality are, for example, flexible backstop systems, high bending accuracy through DNC programmable crowning facility, prebending and folding without tool change, working at several stations, easy material handling through movable support brackets, and bending aids that can be programmed and moved laterally and vertically.

Model	Press force (kN)	Working length (mm)	Stroke (mm)	Distance table (mm)
F-press 50	500	1550 – 2050	250 – 550	570 – 870
F-press 85	850	1550 – 2550	400 – 700	720 – 1020
F-press 130	1300	1550 – 5050	400 – 700	720 – 1020
F-press 170	1700	2550 – 6050	400 – 700	720 – 1020
F-press 230	2300	2550 – 6550	400 – 700	720 – 1020
F-press 300	3000	3050 – 8050	400 – 700	720 – 1020
F-press 400	4000	3050 – 9050	400 – 700	720 – 1020
F-press 500	5000	3050 – 9050	400 – 700	720 – 1020
F-press 600	6000	4050 – 9050	400 – 700	720 – 1020
F-press 800	8000	4050 – 9050	400 – 700	720 – 1020
F-press 1000	10000	4050 – 9050	400–700	720 – 1020
