P-Press Series

From 50 to 225 t press tonnage and working lengths from 1550 to 4050 mm, the P-Press series offers our customers the best operating functions with the latest safety standards whilst simultaneously providing fast, unproblematic workshop programming and ergonomical design. And that at an extremely reasonable cost effectiveness.

Robust basic machine with solid basic facilities and meaningful extension options.
Extremely reasonable cost effectiveness.

Optimum bending freedom

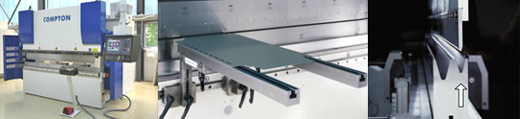

The design of the upper tool clamping also allows the use of excessively raised punches without losing the precision. Various tool holders, which ensure the tool is held securely, can be selected for the lower tool. Our effectively non-contact protection device offers simple, productive working with raised working safety. High safety standards through fail-safe control. The narrow, integral table construction allows optimum bending freedom for maximum parts spectrum.

Quality

The precise crowning facility, integrated in the table, has manual central adjustment. Automatic crowning is available as an option via the CNC control system, the latest backstop technology and dynamic drives (AC servo motors) ensure fast sheet processing and exact bending sides.

Model	Press force (kN)	Working length (mm)	Stroke (mm)	Distance table (mm)
P-press 50	500	1550 – 2050	200 – 350	500 – 700
P-press 85	850	1550 – 2550	200 – 350	500 – 700
P-press 130	1300	1550 – 3050	250 – 550	570 – 800
P-press 170	1700	1550 – 3050	250 – 550	570 – 800
P-press 230	2300	1550 – 3050	250 – 550	570 – 800
P-press 300	3000	1550 – 3050	250 – 550	570 – 800
