F-shear Series

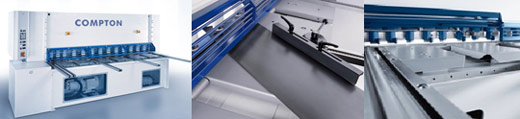

The F-Shear series cuts all materials up to 16 mm sheet thickness reliably. Machines in the F-Shear series are link-guided guillotine shears. High quality and reliability have made them into classics of modern sheet metal machining.
The blade is mounted on a block, which counteracts to deformation by means of tension and pressure screws. This guarantees exact parallelism.
Adjustable Angle Limit Stop
The solid design, stable all-steel columnar construction style, the modern, low-maintenance oil hydraulics, the overload-proof pressure valves and low-maintenance sliding ways provide a reliable and exact cut even after many thousands of strokes.
Specifications |
F-Shear 108 |
F-Shear 138 |
F-Shear 168 |
Max. thickness (mm) |
10 |
13 |
16 |
Cutting Length (mm) |
3050 |
3050 |
3050 |
Cutting Angle (° ) |
4 |
4 |
4 |
max. strokes [1/min] |
24 |
21 |
18 |
