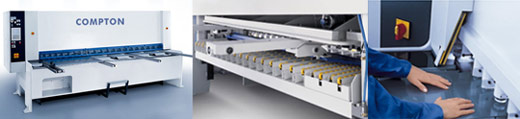

K-shear Series
The K-Shear series adapts the cutting angle and kerf between the upper and lower cutter to the type of material and sheet thickness "at the press of a button". Optimum cutting results with large scale manufacture.
Integrated handling systems such as the sheet metal lifting support or the automatic retracting of sheet metal at the machine front guarantee a high operational capacity.
Exact Cutting
The K-Shear series makes so clean and exact cuts through sheets up to 16 mm strength. With the K-Shear series, you will produce high-precision cuts with large scale manufacture.
Specifications |
K-Shear 068 |
K-Shear 069 |
K-Shear 108 |
K-Shear 138 |
K-Shear 168 |
Max.thickness (mm) |
6 |
6 |
10 |
13 |
16 |
Cutting Length (mm) |
3050 |
4050 |
3050 |
3050 |
3050 |
Cutting Angle (° ) |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
Max. Strokes [1/min] |
26 |
23 |
24 |
21 |
18 |
