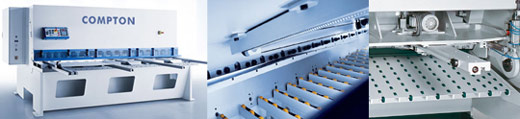

B-shear Series
A wide range of accessories, feeding mechanisms and conveying devices make the B-shear series of machines that can be used flexibly with the finest quality cuts. You can adjust the cutting angle to the material to be cut.
You want to integrate the guillotine shears into an automated series production? Then you should order a customized
the B-shear series machine
Cut to Measure
The B-shear series is available in many sizes and can be automated almost without limitation for series production and also be integrated into cutting centres. We are looking forward to noting down your ideas and will develop the gate shears that exactly correspond to your requirements.
Specifications |
B-Shear 082 |
B-Shear 106 |
B-Shear 136 |
B-Shear 166 |
Max. thickness (mm) |
8 |
10 |
13 |
16 |
Cutting Length (mm) |
5050 |
8050 |
8050 |
8050 |
Cutting Angle (° ) |
1°15’ |
1°15’ |
1°5’ |
1°35’ |
Max. Strokes [1/min] |
21 |
16 |
13 |
13 |
